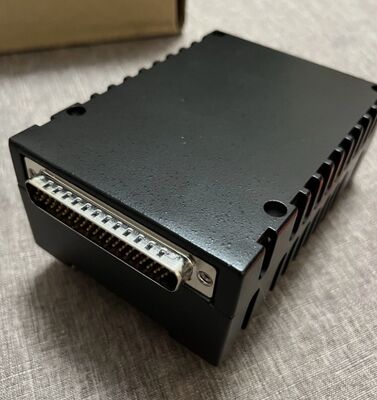

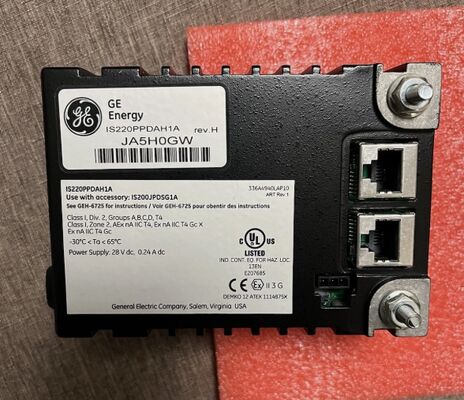

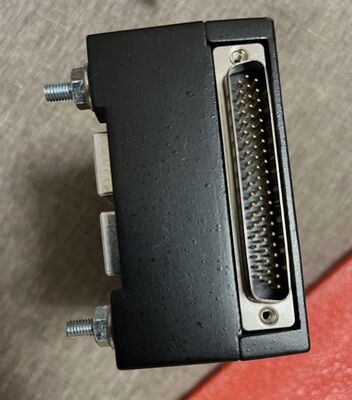

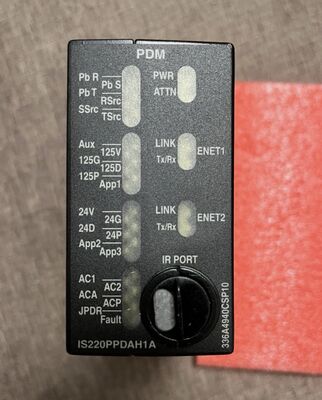

IS220PPDAH1A General Electric Mark VIe I/O Power Distribution System Feedback Unit Gas Turbine
تفاصيل المنتج
| ماركة | جنرال إلكتريك | رقم الوحدة | IS220PPDAH1A |
|---|---|---|---|
| كتالوج | مارك السادس | سعر البيع | 5000 دولار |
| حالة | في الأوراق المالية | أصل | الولايات المتحدة الأمريكية |
| مهلة | 3-5 أيام عمل | الضمان | 1 سنة |
| وزن | 1 كجم |
منتوج وصف
IS220PPDAH1A General Electric Mark VIe I/O Power Distribution System Feedback Unit Gas Turbine
IS220PPDAH1A General Electric Mark VIe I/O Power Distribution System Feedback Unit Gas Turbine
Features
- Product Type: Power Distribution System Feedback Unit / I/O Pack
- Input Power: 24 VDC / 335 VDC (depending on configuration)
- Output Current: 5 A (maximum)
- Communication Interface: Dual 100 Mbps full-duplex Ethernet ports (IONet)
- Supported Protocols: Modbus RTU, EtherNet/IP
- Storage Temperature: -55°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration Resistance: 0.05 g RMS (57-2,000 Hz)
Description
As a key I/O component of the Mark VIe control platform, the GE IS220PPDAH1A provides precise power diagnostics and data integration capabilities for the system and is primarily used to monitor the status of the power distribution network in real time.
By receiving and processing feedback signals from six power distribution panels (JPDG/JPDC/JPDM/JPDS), this model continuously monitors ground fault conditions, power bus voltages, the health of high-capacity power supplies, and the on/off status of each branch circuit, transmitting this data via the IONet (I/O Ethernet) network to the main controller.
This module serves as a critical hardware foundation for implementing predictive maintenance and system-level power management within the Mark VIe distributed control architecture, and is widely deployed in critical facilities such as gas turbines, steam turbines, and combined-cycle power generation units.
Operating Environment
| Environment Type | Capabilities |
|---|---|
| Extreme temperature ranges | It operates reliably in environments ranging from -40°C (such as Arctic oil fields and high-altitude hydroelectric power stations) to +70°C (such as desert power plants and tropical petrochemical facilities). |
| High-vibration/high-shock environments | It meets the operational requirements of industrial sites with continuous mechanical vibration, such as gas turbine plants and compressor stations. |
| Strong Electromagnetic Interference Environments | In locations with strong electromagnetic fields and switching surges--such as power plants and substations--the module's optocoupler isolation design ensures interference-free signal transmission. |
| High Humidity/Salt Fog Environments | Featuring circuit boards with anti-corrosion coatings, it is capable of withstanding highly humid and corrosive salt fog environments, such as coastal power plants and ocean-going vessels. |
Application Example
To prevent unplanned tripping caused by ground faults in auxiliary power supplies, a major power generation group installed IS220PPDAH1A power distribution feedback units in the control system of its 660 MW combined-cycle units.
These units monitor the JPDG power distribution panels 24 hours a day, collecting real-time fault, voltage, and circuit status signals, which are then uploaded to the main controller via IONet. Using the accompanying software, the system enables online monitoring of power distribution parameters.
This has eliminated potential hazards such as aging insulation and ground faults, enabling timely intervention to prevent tripping incidents. As a result, unplanned outages related to power supply systems have decreased by approximately 80%, significantly enhancing unit stability and annual economic benefits.
Product Details
| Specification | Details |
|---|---|
| Brand Name | General Electric |
| Model | IS220PPDAH1A |
| Catalog | Mark VIe |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | USA |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $5000 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Compatible Systems
- ABB: AC800M/DSQC/Bailey INFI 90
- Bently Nevada: 3500/3300 system
- GE: IC693/IC695/IC697/IC698/IC200/IC660/IC670/IS200/DS200 series
- Honeywell: TDC 2000/TDC3000/TPS/Security systems
- Schneider: Quantum 140 series
- Siemens: MOORE/6ES5/6GK/6DD/6AR Series
- Woodward: 505/505E/9905/2301D-ST series
- Yokogawa: CS3000 system
- Allen-Bradley: 1747/1746/1761/1763/1762/1766/1764/1769/1768/1756/1789/1794/1771/1785 series
Recommended Products
- DS200ACNAG1A
- IS200AEADH1ACA
- DS200ADGIH1A
- IS200AEBMG1AFB
- DS200ADG1H1AAA
- IS200AEGIH1BBR2
- DS200ADGIH1AAA
- IS200AEPAH1AFD
- DS200BDAAG1A
- IS200BAIAH1BEE
- DS200CPCAG1A
- IS200BICIH1ACA
- DS200CTBAG1A
- IS200BICIH1ADB
- DS200CTBAG1ACC
- IS200BICLH1AFD
- DS200CTBAG1ADD
- IS200BICLH1AFF
- DS200DACAG1ACD
Contact Information
Contact Person: Nelly Yang
Email: sales12@htechplc.com
Phone/Skype/Whatsapp: +86 18060985064
Shipping: Available for immediate shipping via DHL, UPS, TNT, FedEx and EMS from Xiamen port.
Email us now for competitive pricing and professional service!
